350z/370z/G35/G37 Dual Caliper E-Brake Brackets

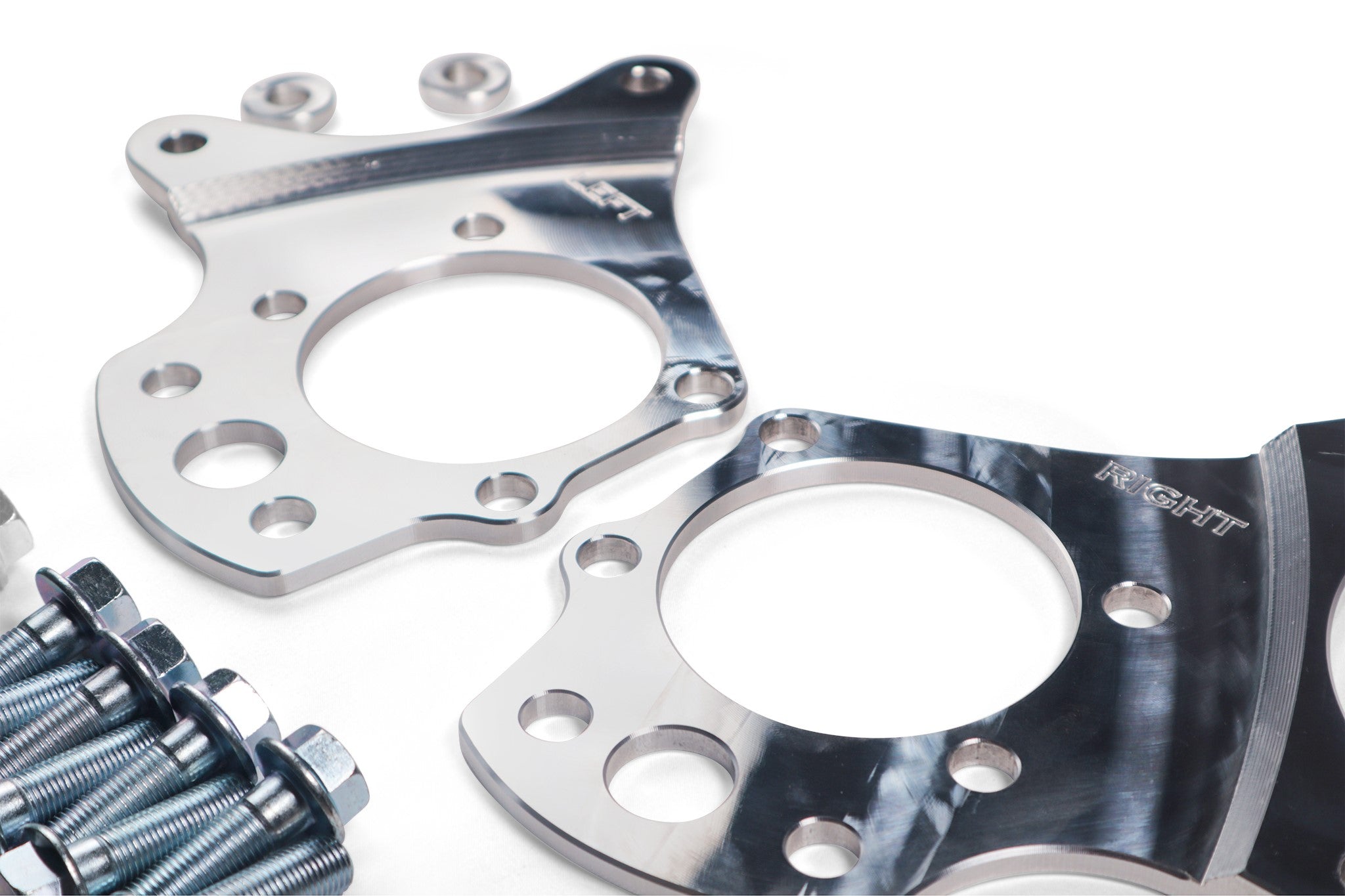

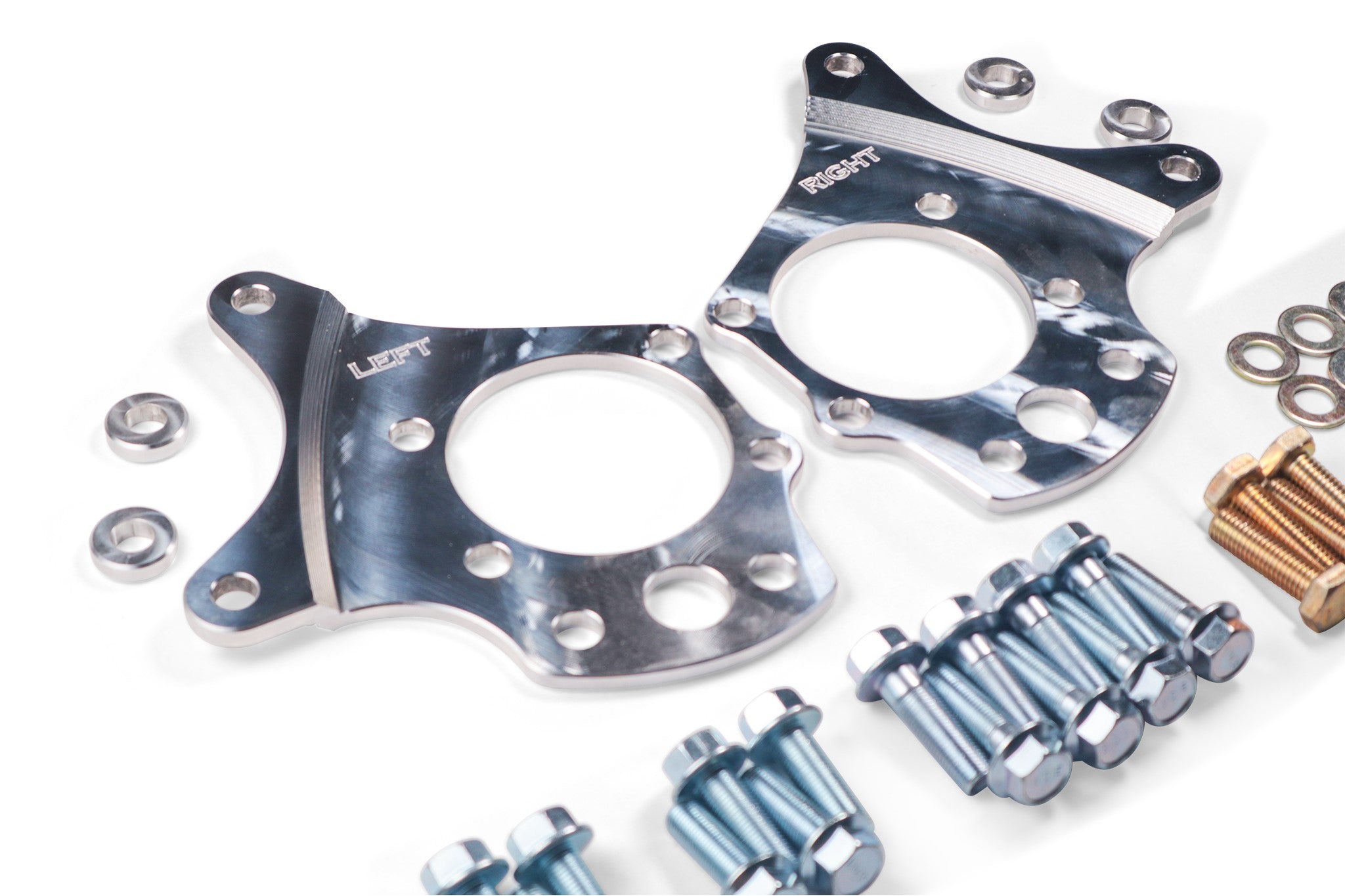

The Henko AutoLab Dual Caliper Bracket is made for running dual rear calipers in your Z33/Z34/G35/G37 when using a standalone hydro e-brake and it works with Brembo/Akembo or non-Brembo brake calipers.

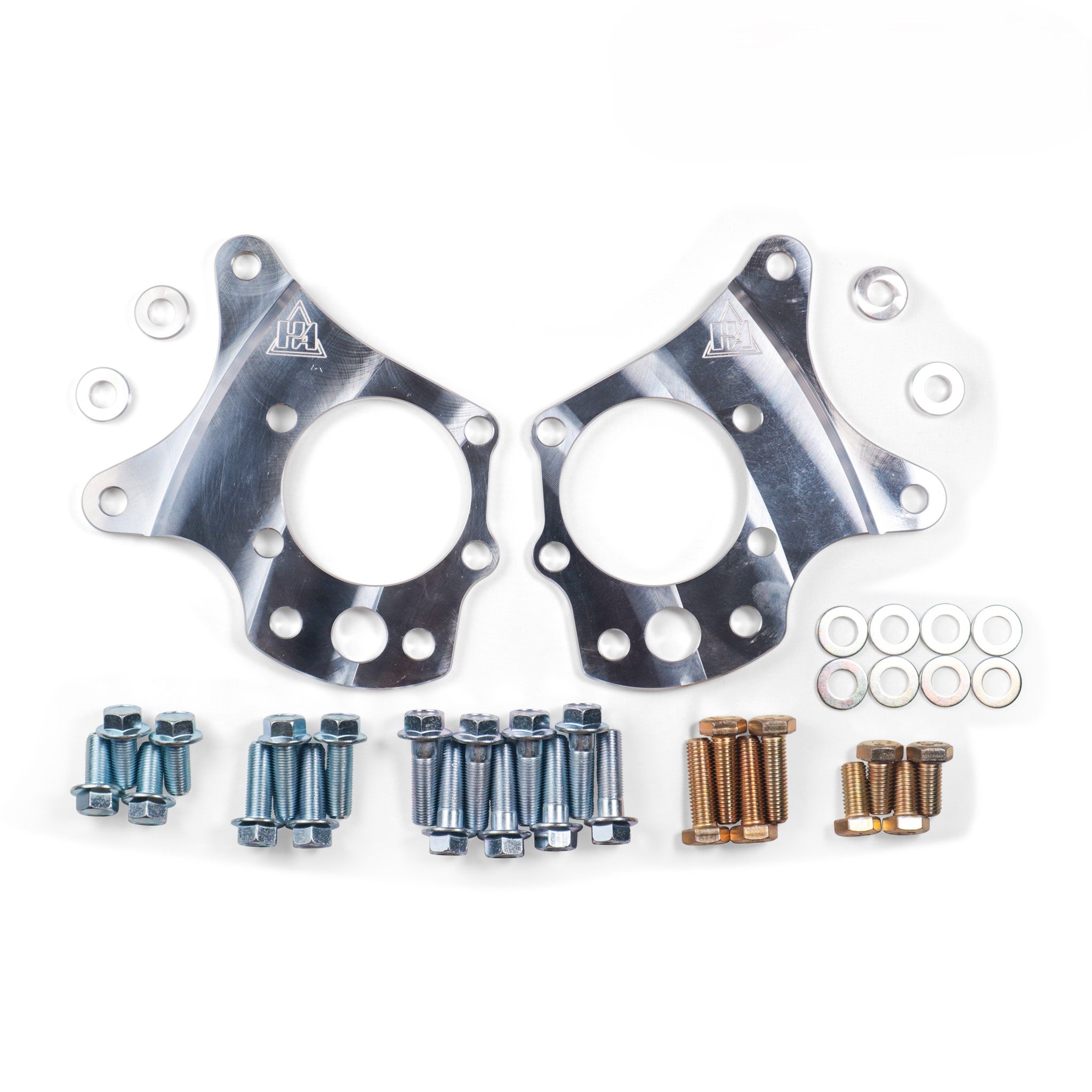

Bolt-on kit, retains cable parking brake function, and includes all new JIS OEM spec grade 10.9 hardware. Includes bolts for both Brembo and non-Brembo calipers, this way if you ever change them in the future, you already have the hardware.

Machined from Billet 6061 aluminum and only 7mm thick at the hub.

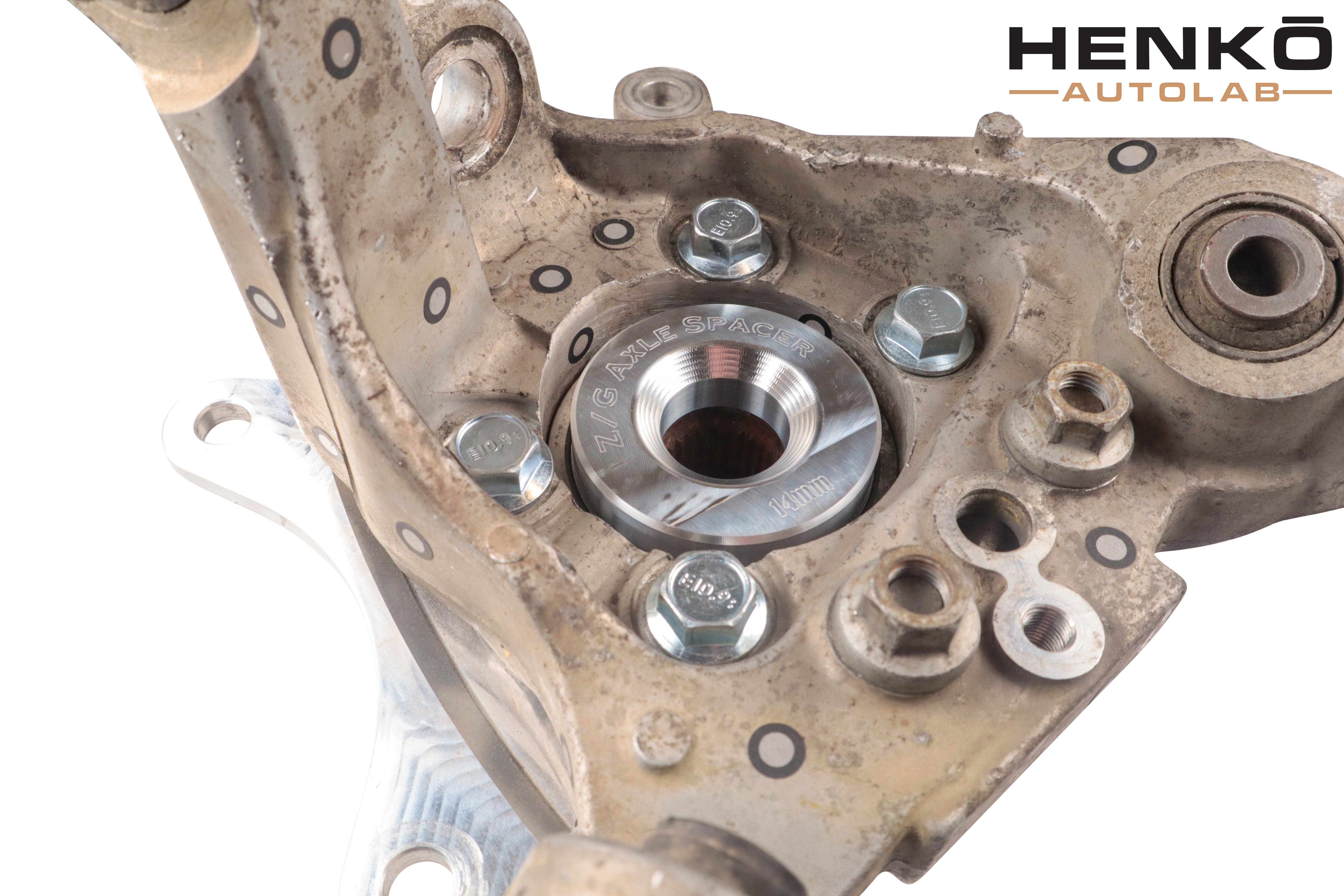

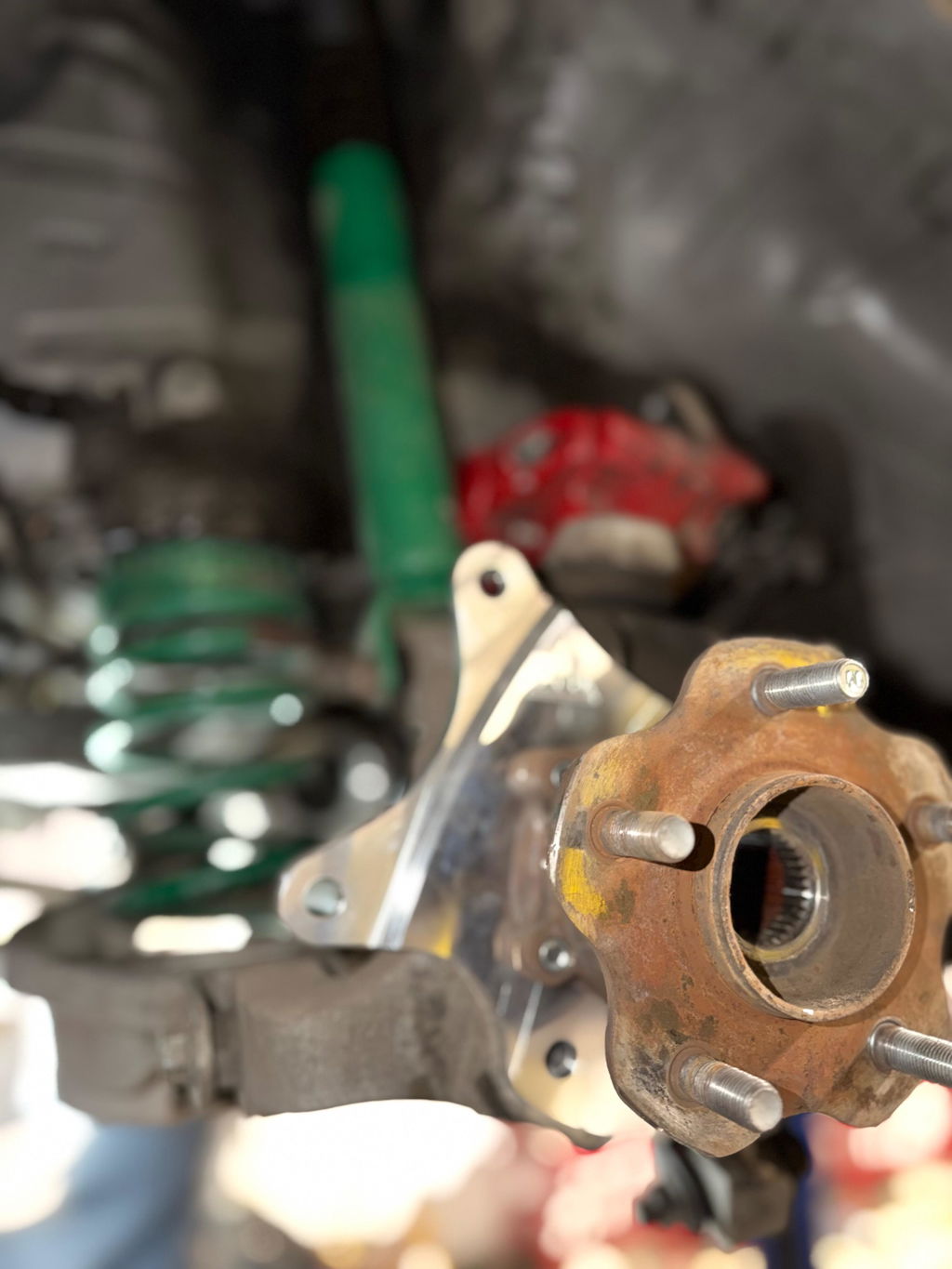

Axle spacers are a good idea to use, especially if your car is very low. When you install this bracket, it sandwiches behind the hub which in turn stretches your axles out 7mm (the thickness of the bracket).

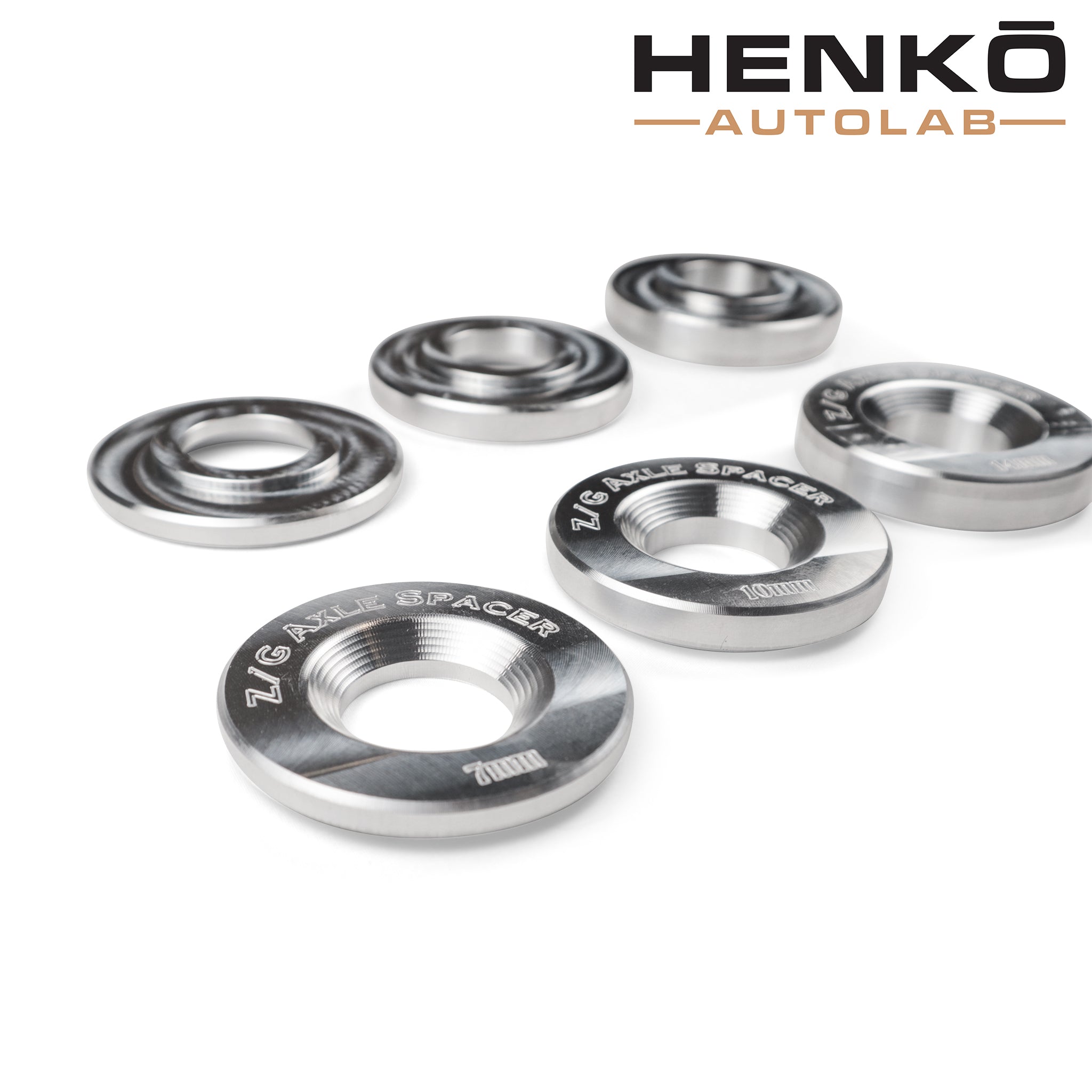

What size axle spacers do I need?

7mm is our recommended minimum to ensure the space created by installing the brackets are taken up.

10mm is recommended if your car is moderately lowered and your camber is less than -3 degrees.

14mm is recommended if your car is very low or your camber is more than -3 degrees.

ADDITIONAL NOTES:

Must use the same rear caliper as your second caliper. I.E can not mix Brembo/Akebono with factory single piston calipers.

350z/G35 Owners: 03-05 and 06+ non-Brembo calipers and rotors are different. Ensure you're second set of calipers are also from the same year generation.
